Clinker Build
If you have decided to build a model in the clinker style then we should make a start. I will be constructing this model at 1:18 scale and the planks and timberwork will be made from Tasmanian Oak.
There are many ways to construct a clinker style model but I am going to look at building this model on a wooden mould rather than just on frames. This means that before we think about the hull itself we have to build the mould. At 1:18th scale there is not a lot more material required and I think that the benefits of a good stable mould are worth the additional effort in these smaller sizes. The mould will be made from 3mm plywood and pine.
The following photos will step through the process that I will be using. This is certainly not the only way so please feel free to use materials or methods that work for you.
[GDC_row]
[GDC_column size=”half”]
The plans can be printed off at home or at a print shop etc.
[/GDC_column]
[GDC_column size=”half”]

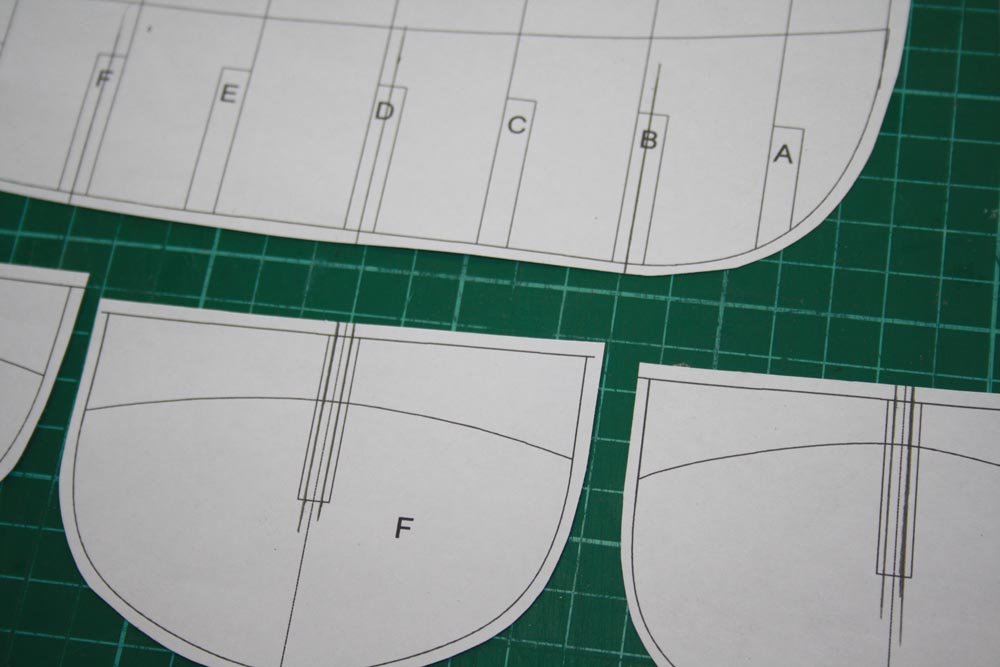

I cut out each frame template with a few millimeters extra around the outside. I will only be using every second frame for the mould. Because I am using 3mm plywood each frame and the keel will need the width of the slot modified to 3mm rather than the 6mm of the plan. A simple line drawn with a pencil on the appropriate frames is all that is required.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
I roughly mark on the plywood where each frame will be positioned.
[/GDC_column]
[GDC_column size=”half”]

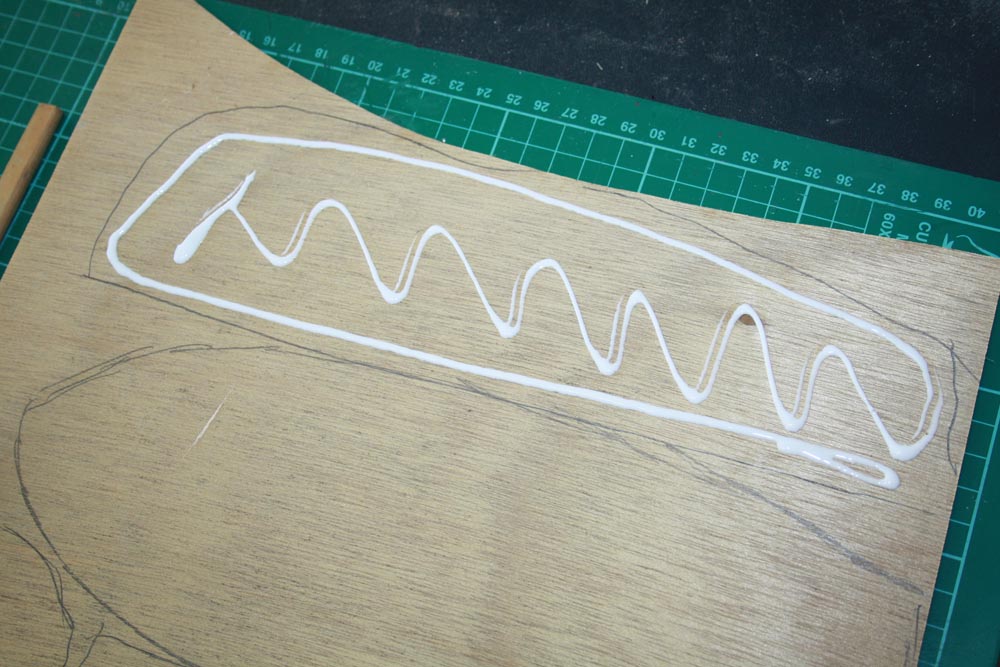

I am using PVA glue to stick the templates to the plywood. You could use whatever type of glue you choose but the idea is not to let the paper get soaked as it will stretch and go out of shape.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

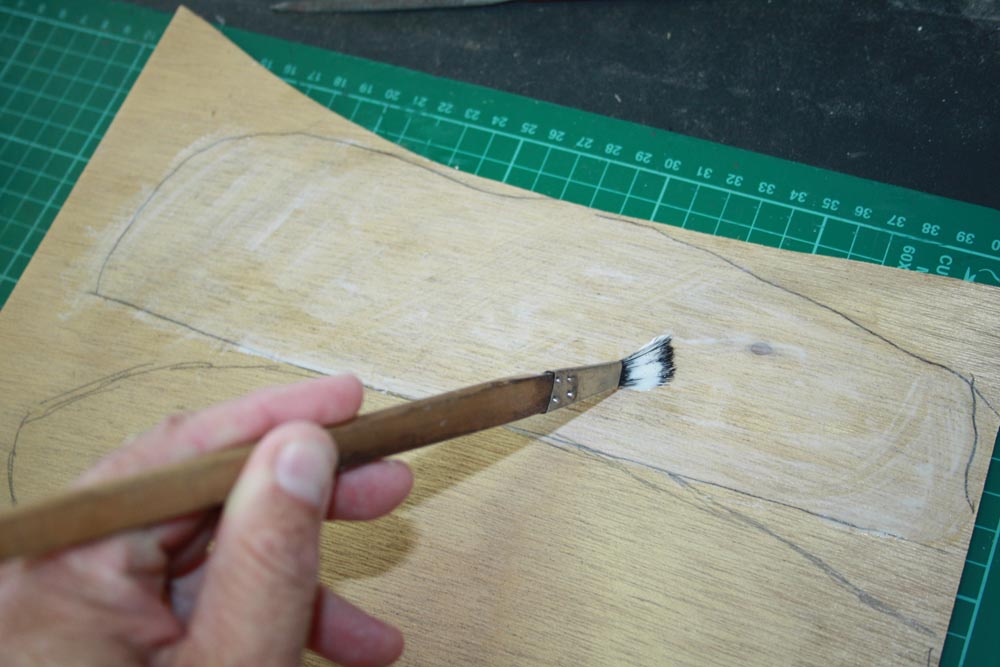

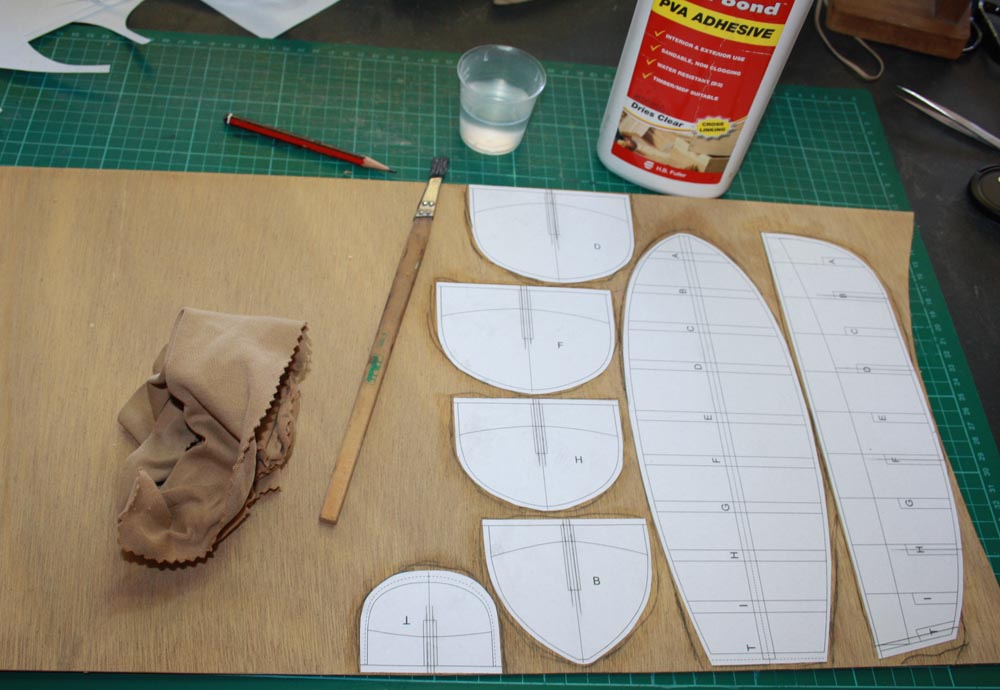

I use a stiff brush dipped in some water to help thin the glue and brush it around. The paper template is placed onto the ply and wiped over with a rag to make sure all edges stick.
[/GDC_column]
[GDC_column size=”half”]
The glue is allowed to set.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
If you only have access to hand tools you can use a coping saw or a fret saw to cut out the frames, keel and base.
[/GDC_column]
[GDC_column size=”half”]

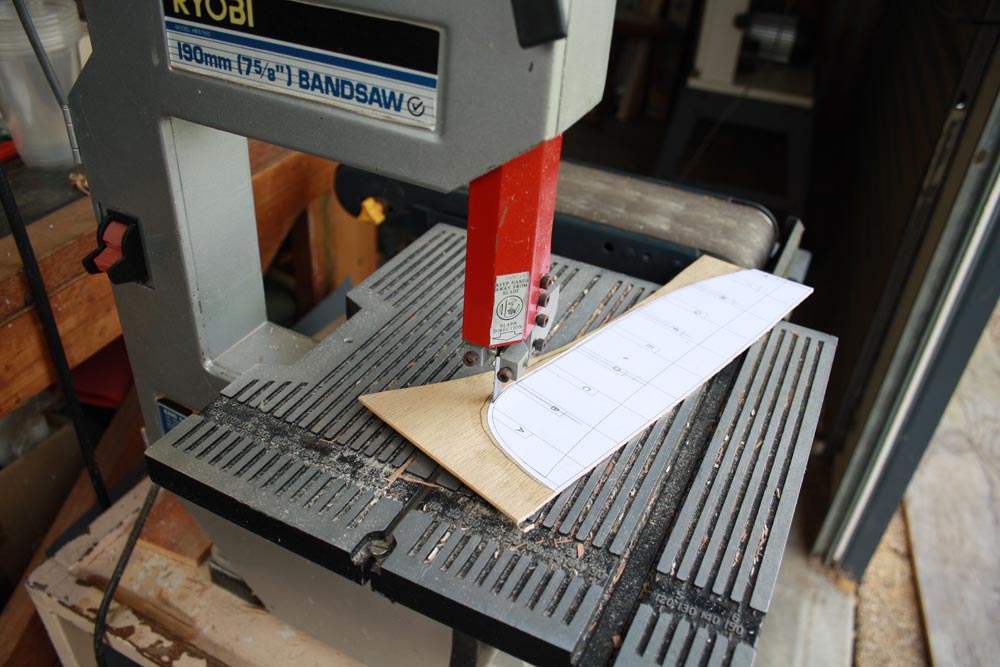

Don’t be afraid to use power tools if you have them. I generally use a band saw for most of my cutting of wooden parts.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

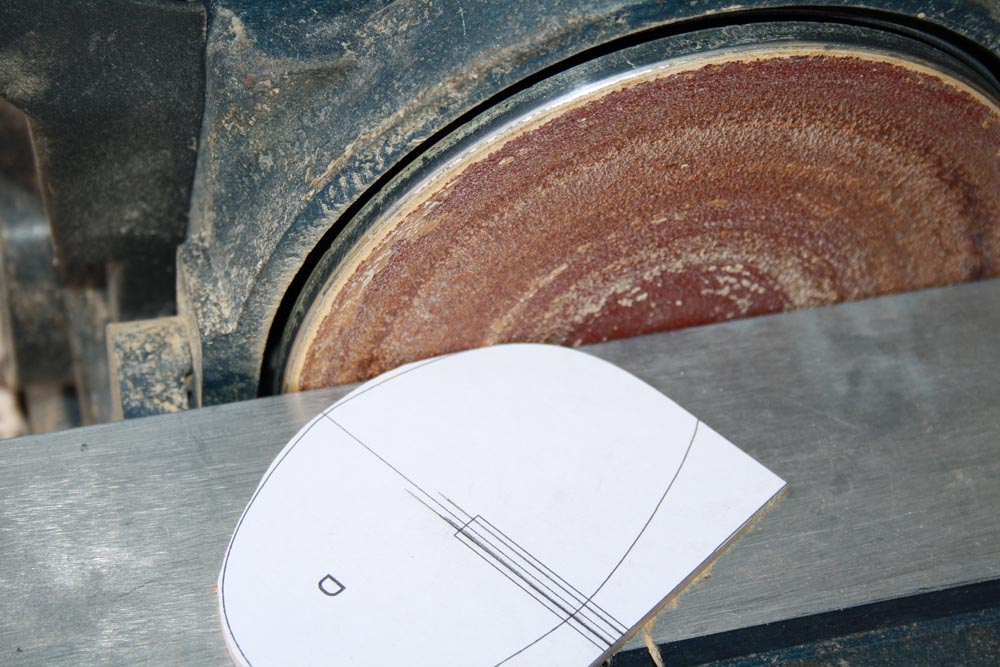

I prefer to cut parts out a little oversize and then use a disc sander to get to the final finished size. I find that I have a bit more control this way.
[/GDC_column]
[GDC_column size=”half”]

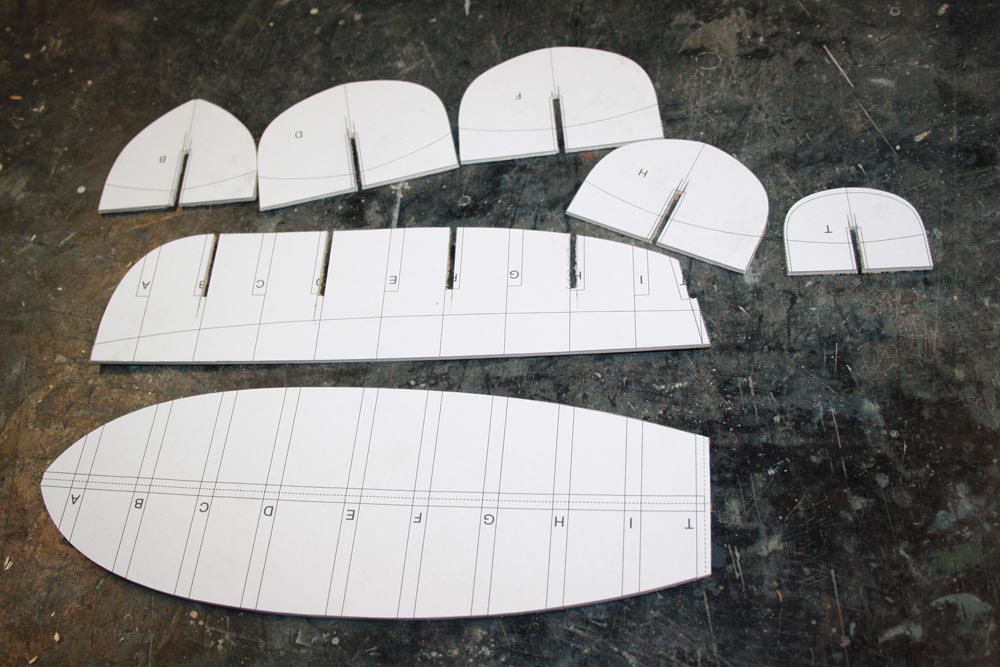

All of the parts have been cut out and finished to size with the slot cut in each part for assembly.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
The parts are put together to test the fit. It is likely that cheaper grades of plywood will bend a little when the parts are cut out. This bending will be straightened out when things are glued together.
[/GDC_column]
[GDC_column size=”half”]

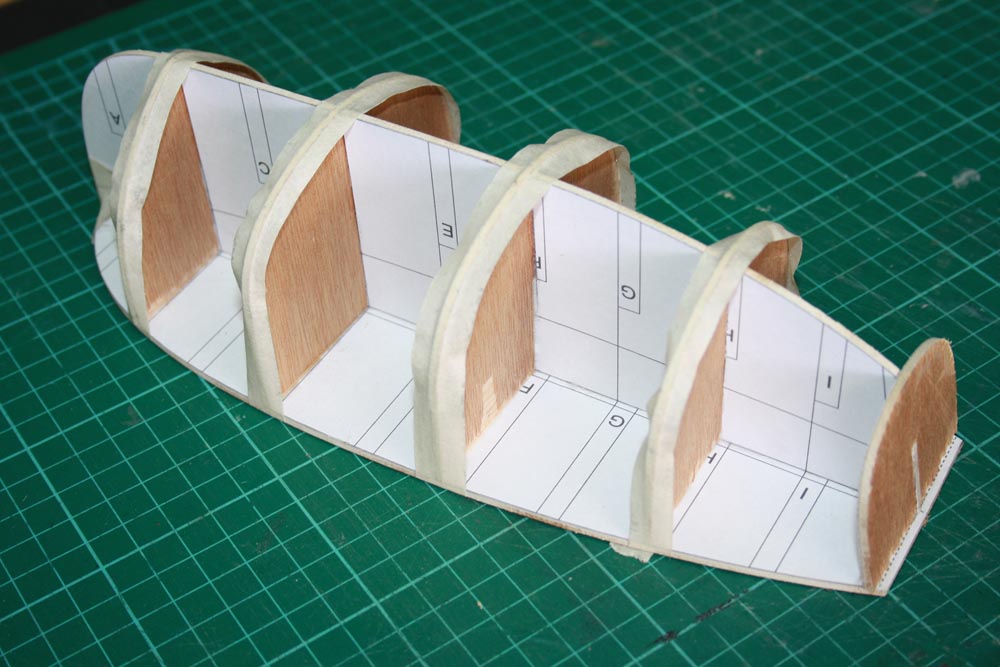

The parts were all glued together with everything held in place with masking tape while the glue dries.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
Started to fill in between the frames with pieces of pine cut to size.
[/GDC_column]
[GDC_column size=”half”]

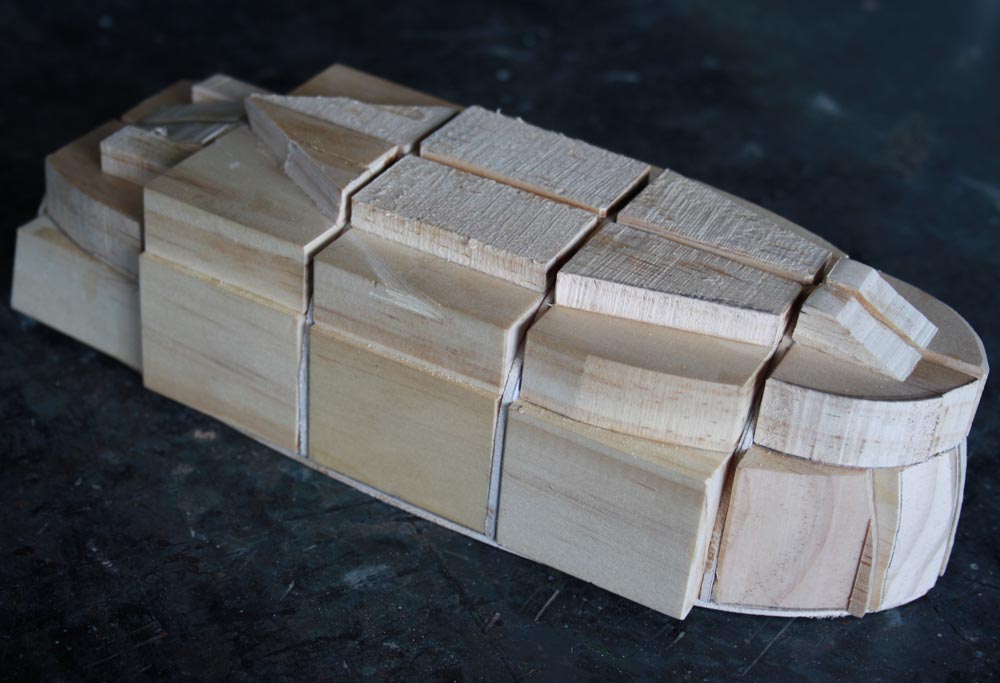

It is pretty rough looking with all of these blocks of pine glued on to fill between the frames.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
After a bit of carving and sanding we end up with the mould for our open boat.
[/GDC_column]
[GDC_column size=”half”]

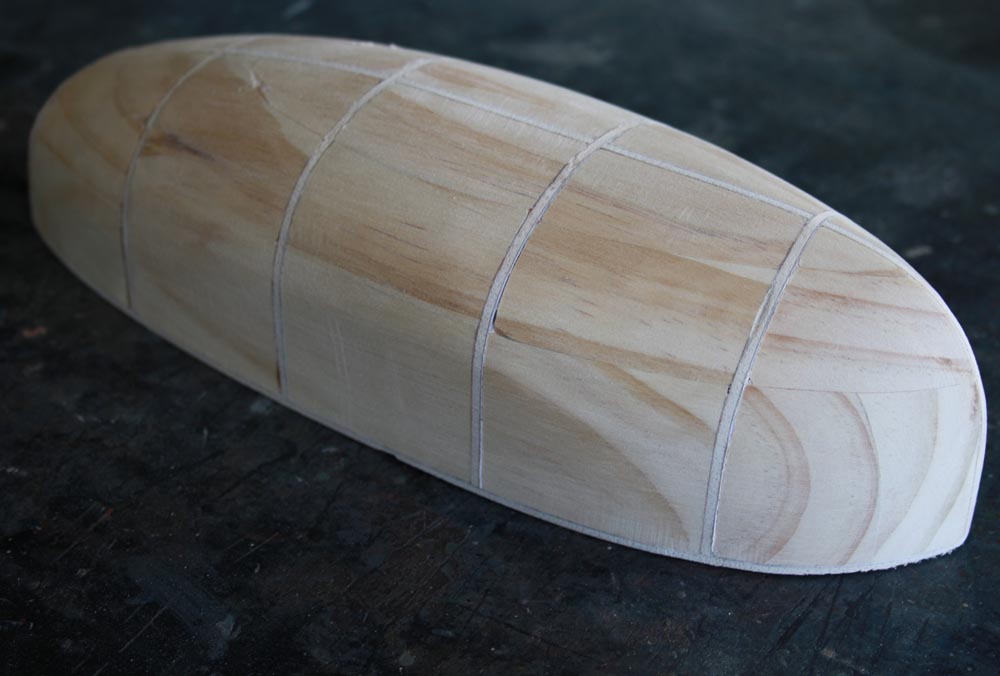

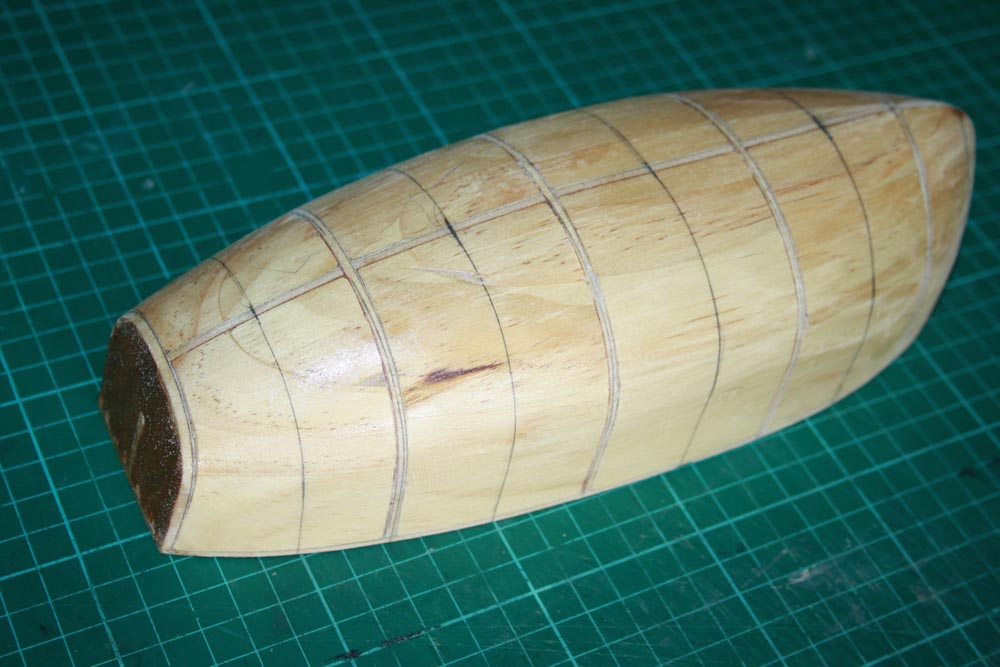

Lines were drawn on the plug where the internal ribs will sit and the plug was given a couple of coats of clear varnish to seal it.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
The planks for this model were cut from Tasmanian Oak. The hull planks were cut and finished to a size of 12mm wide by 1mm thick.
[/GDC_column]
[GDC_column size=”half”]

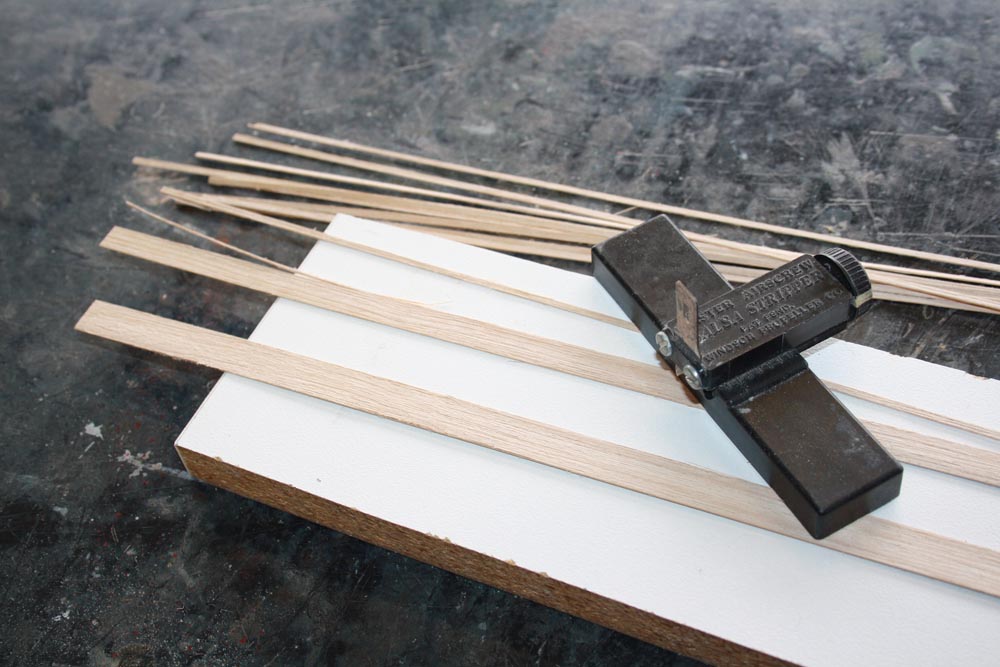

The wood for the ribs was sanded a little thinner to .75mm thick. I cut these to 2mm thick using a balsa cutter and a sharp modelling knife.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

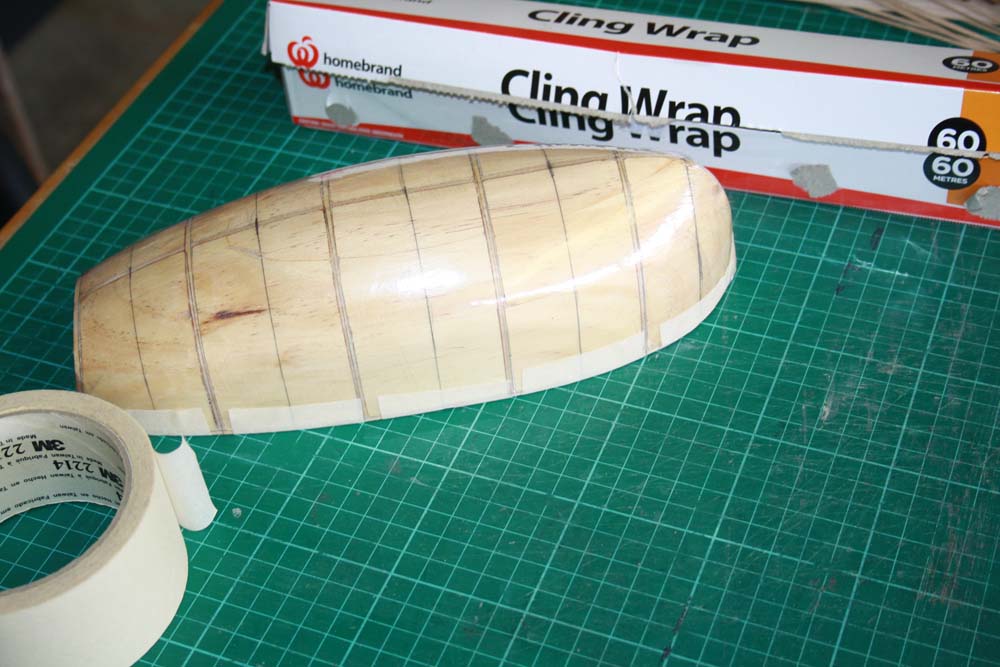

To stop the planks and ribs from sticking to the plug I stretched some cling wrap over the plug holding it in place with masking tape along the bottom edge.
[/GDC_column]
[GDC_column size=”half”]

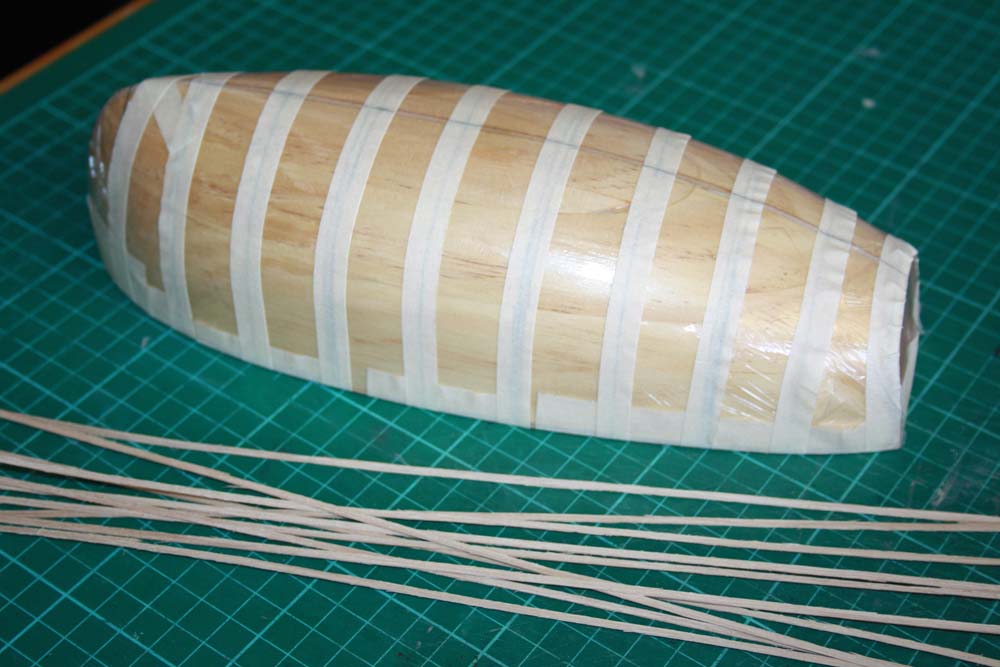

We do need something for the ends of the ribs to be glued to during construction so I cut thin strips of masking tape and stuck these to the cling wrap under where each rid would be placed.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

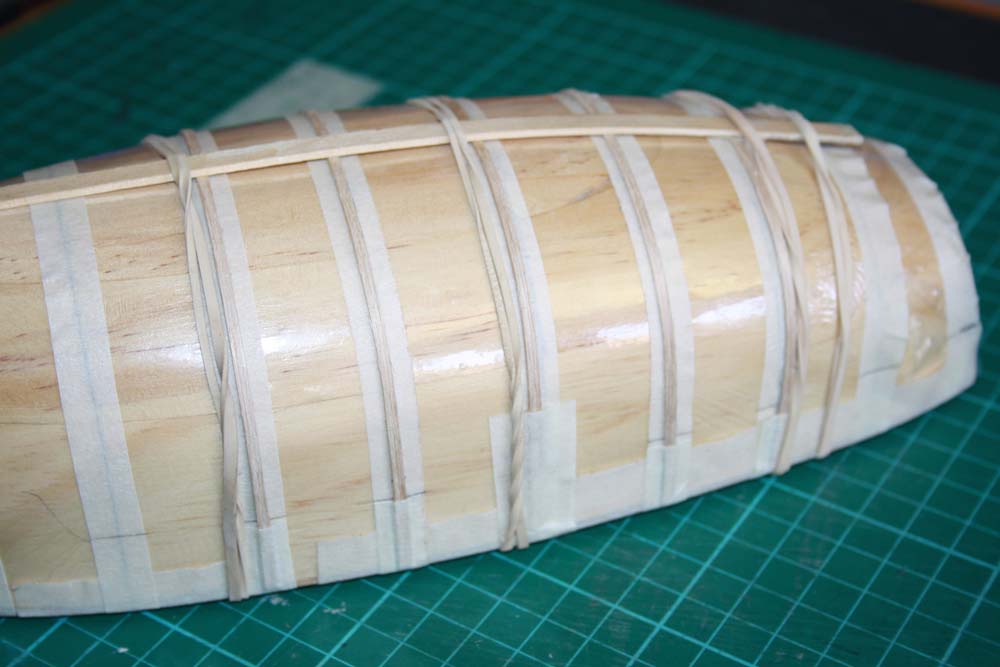

The ribs are glued onto the tape on the center line and at the edges. Things were held in place with rubber bands until the glue dries.
[/GDC_column]
[GDC_column size=”half”]

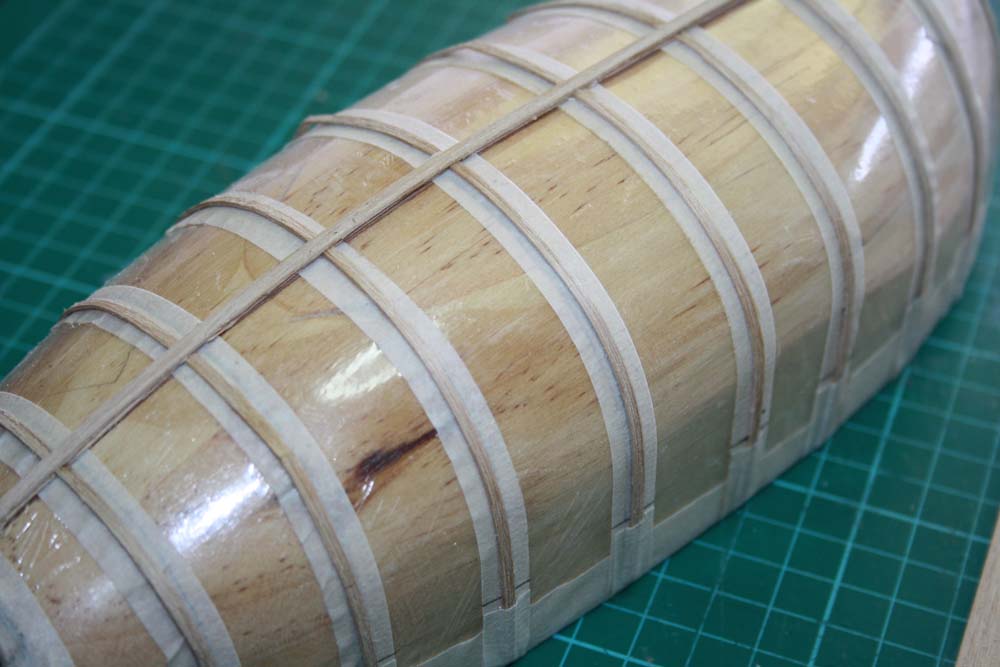

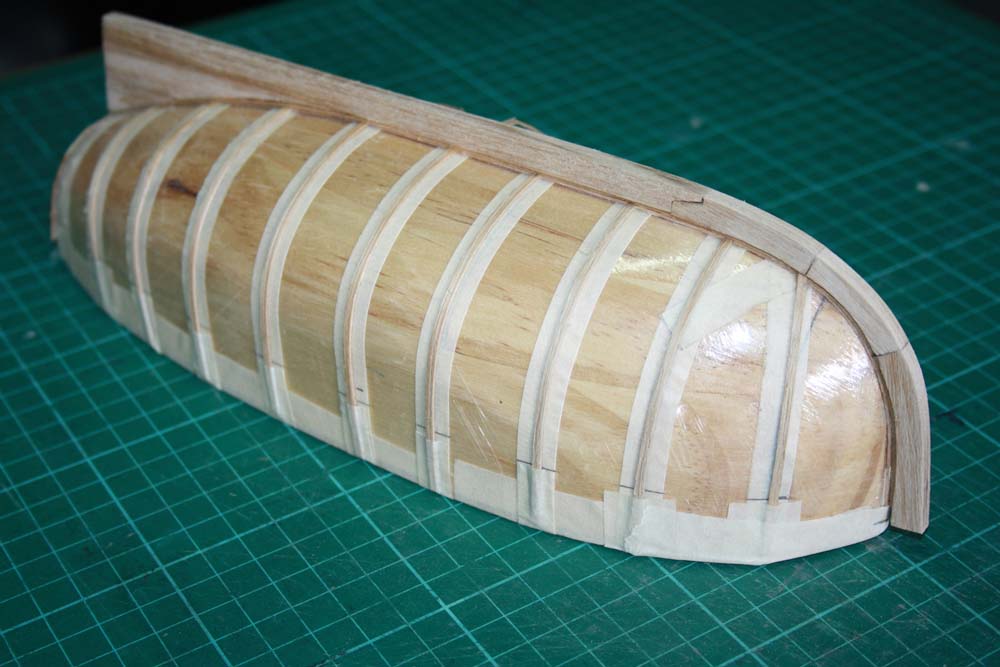

Some of the frames required soaking in water to allow them to bend to the required shape. When all of the ribs were in place a timber the same thickness as the planks and about 3mm wide is glued along the center line of the hull.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

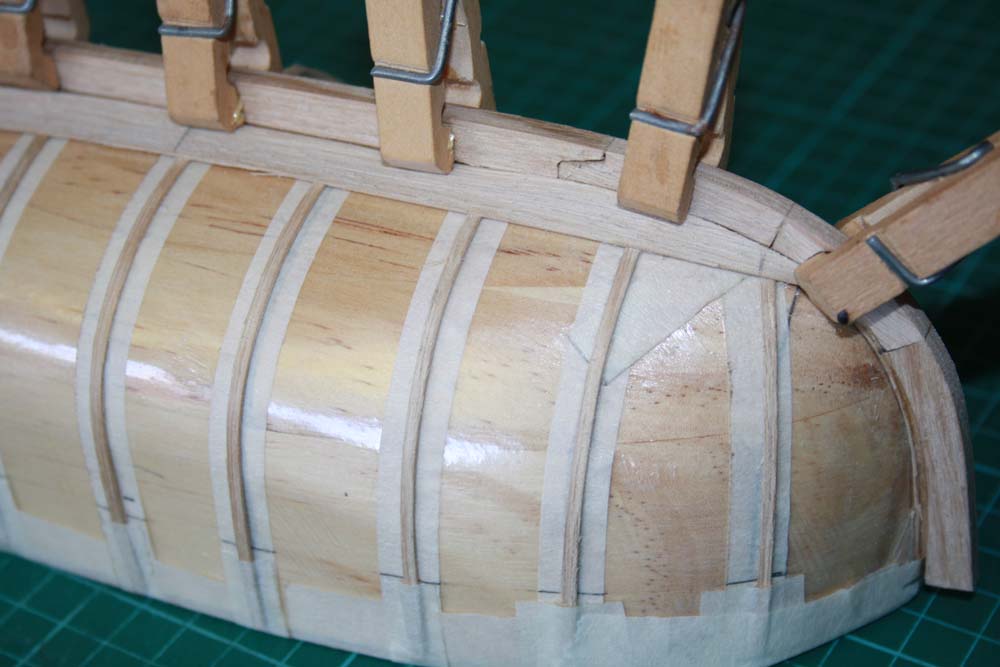

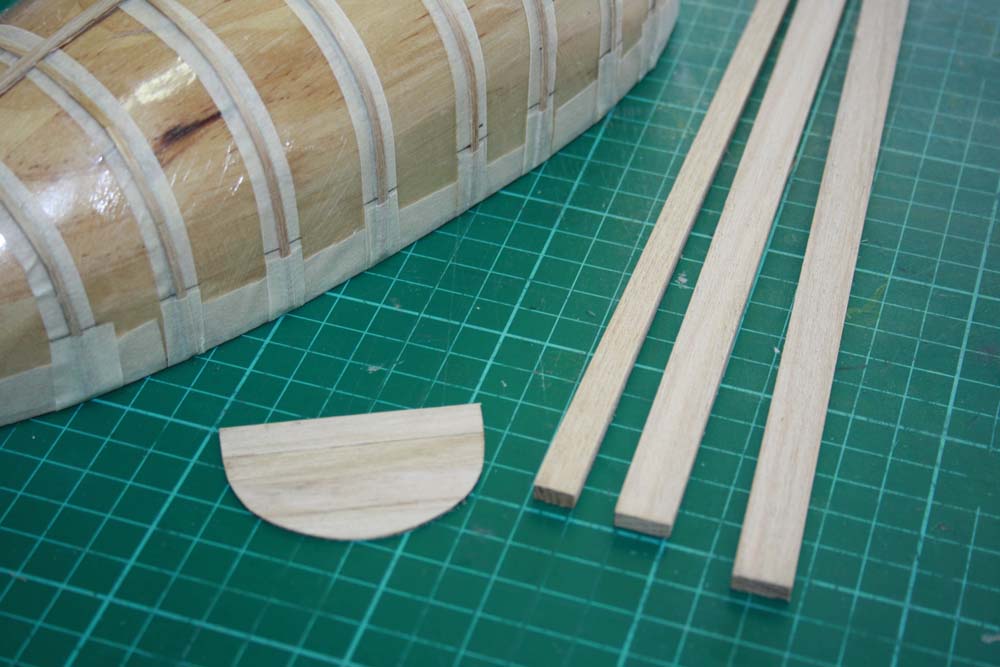

A transom was made from the same size timber that is to be used for the planking. Four short pieces were glued together edge to edge them shaped to fit the transom (just a little over sized). The timber for the keel and stem were prepared to size.
[/GDC_column]
[GDC_column size=”half”]

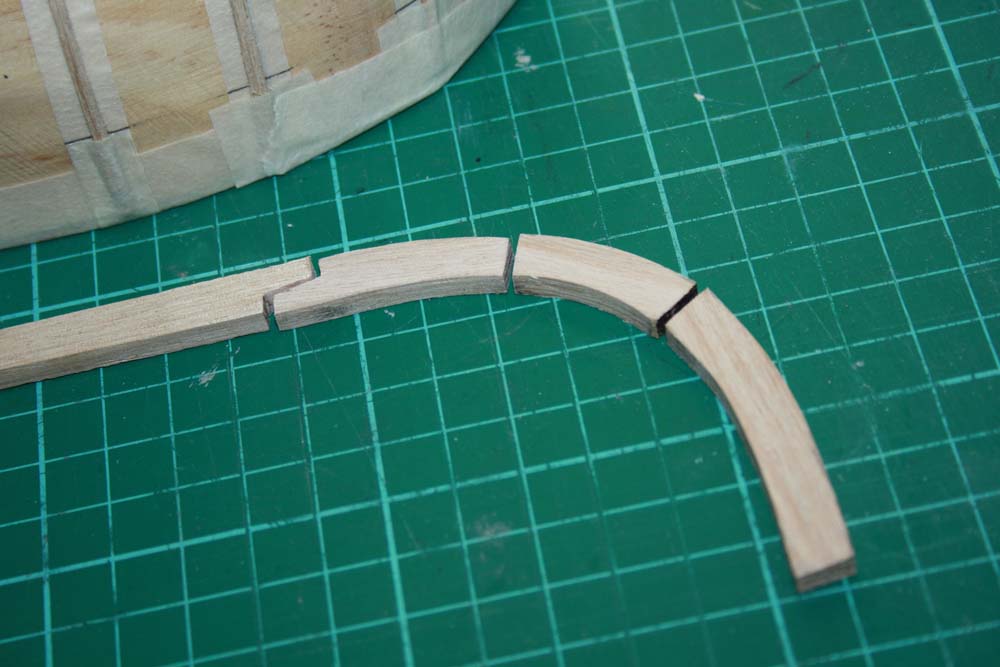

The stem post and the keel pieces were cut to shape. These pieces were about 4.5mm thick.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]
All of the keel pieces were glued into place.
[/GDC_column]
[GDC_column size=”half”]
The garboard strakes were shaped so that they fit tightly against the keel.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

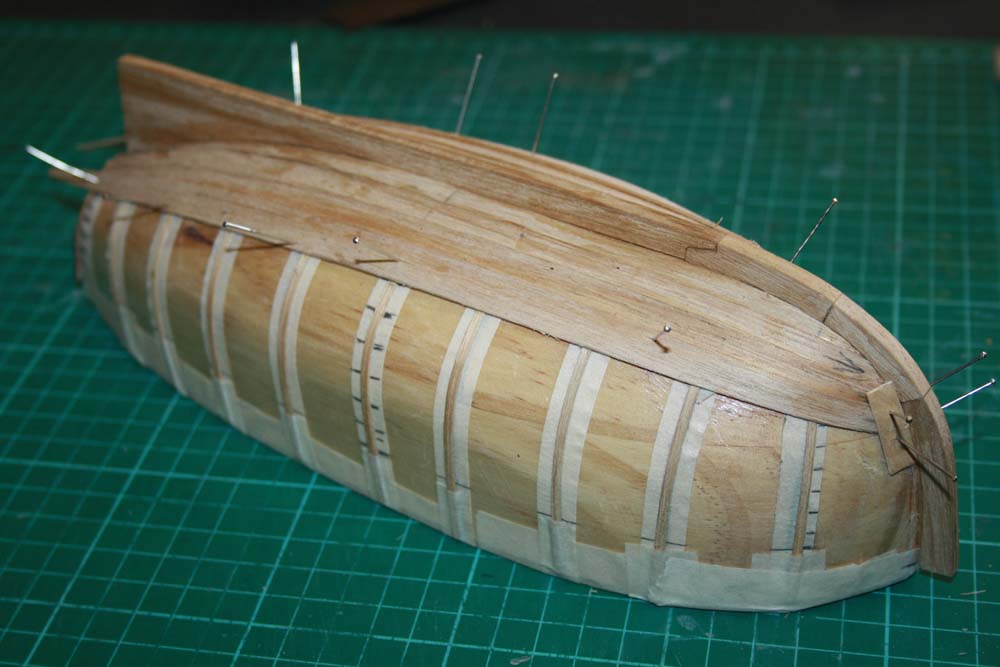

The garboard strakes were glued in place. The edge should sit neatly into the rebate under the keel pieces.
[/GDC_column]
[GDC_column size=”half”]

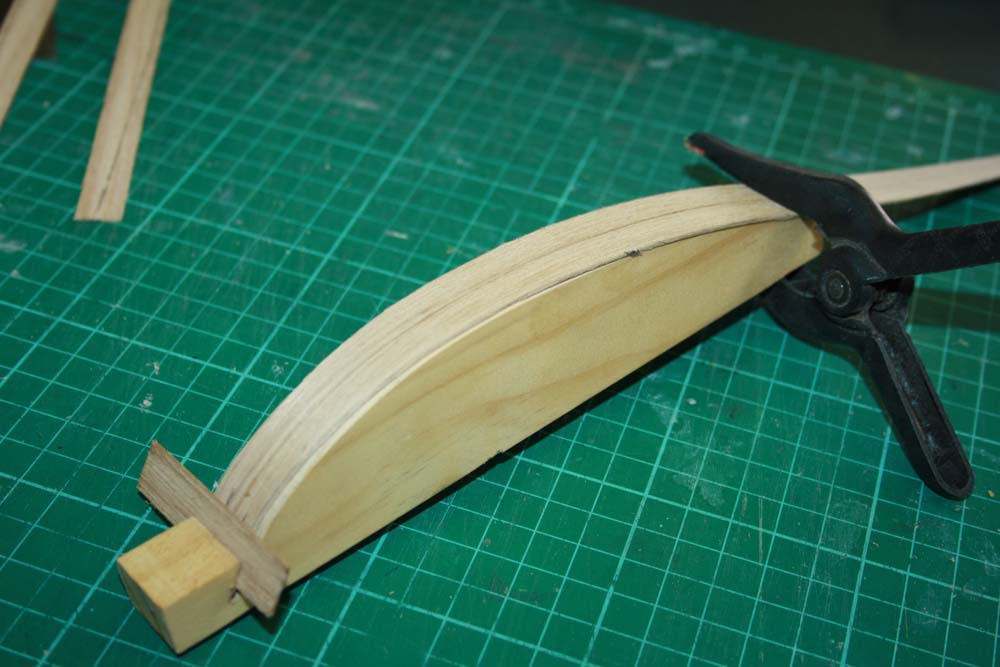

The first couple of planks were soaked in water and placed into the bending jig to dry.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

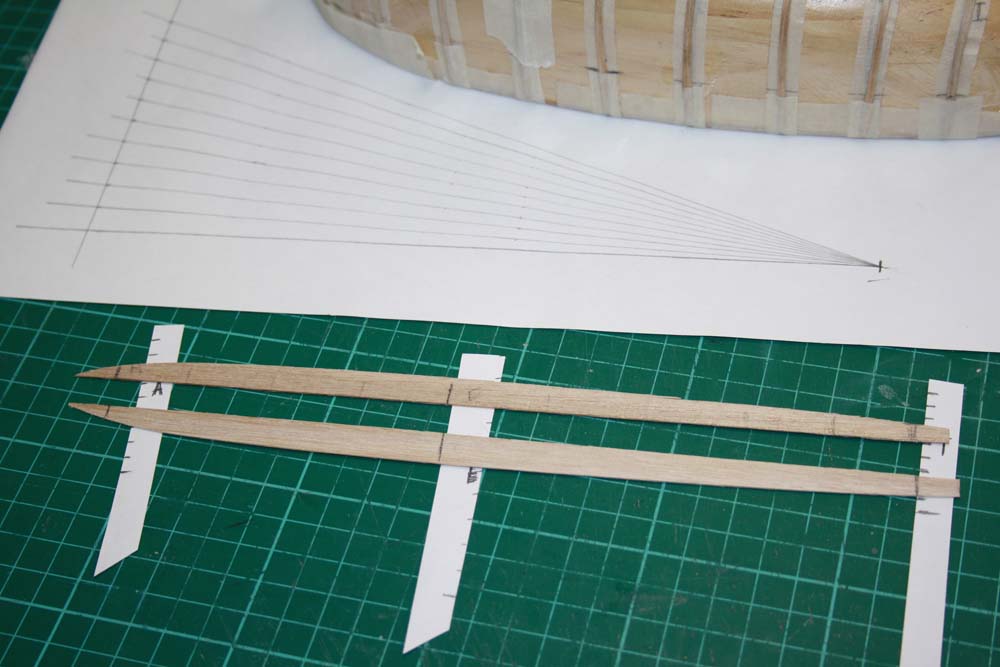

Planks were fitted in a clinker fashion, ie the edge overlapping the previous plank.
[/GDC_column]
[GDC_column size=”half”]

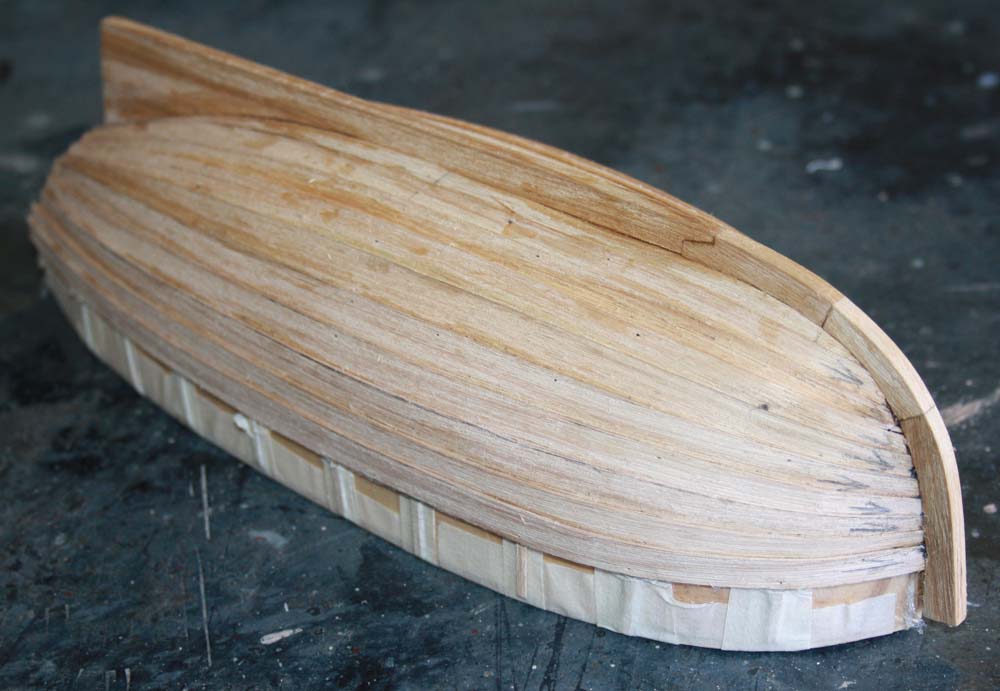

All of the planking complete.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

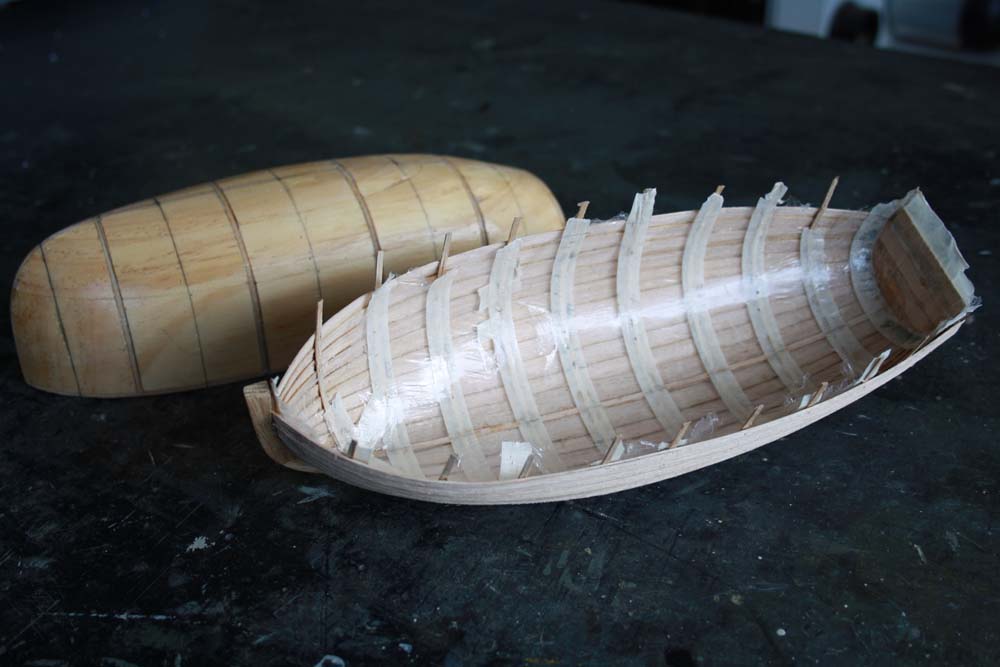

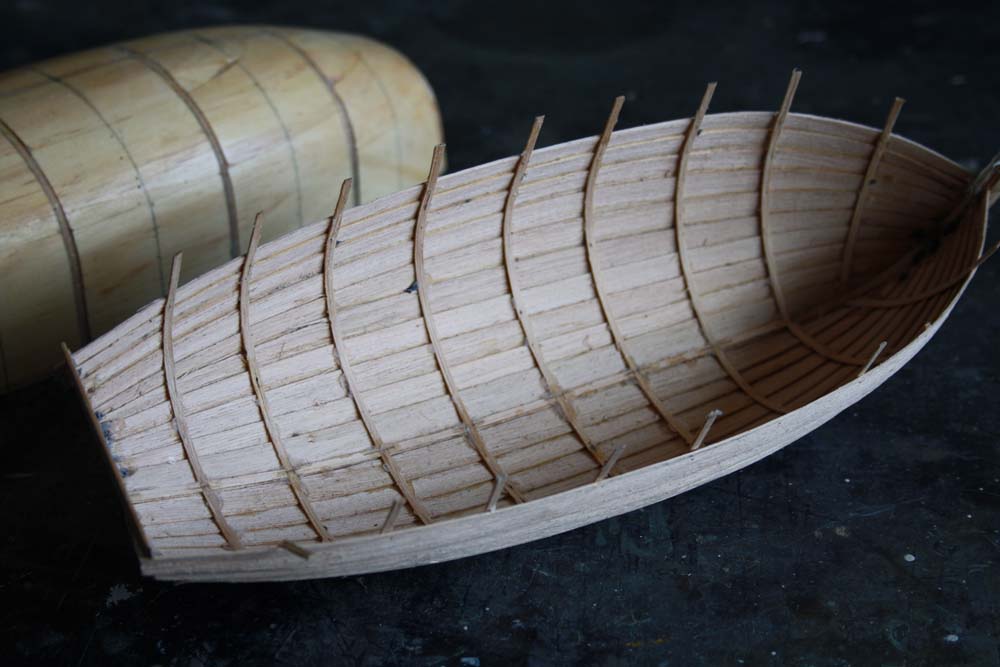

The hull was removed from the mould.
[/GDC_column]
[GDC_column size=”half”]
The cling wrap and tape was removed from the inside of the hull.
[/GDC_column]
[/GDC_row]
[GDC_row]
[GDC_column size=”half”]

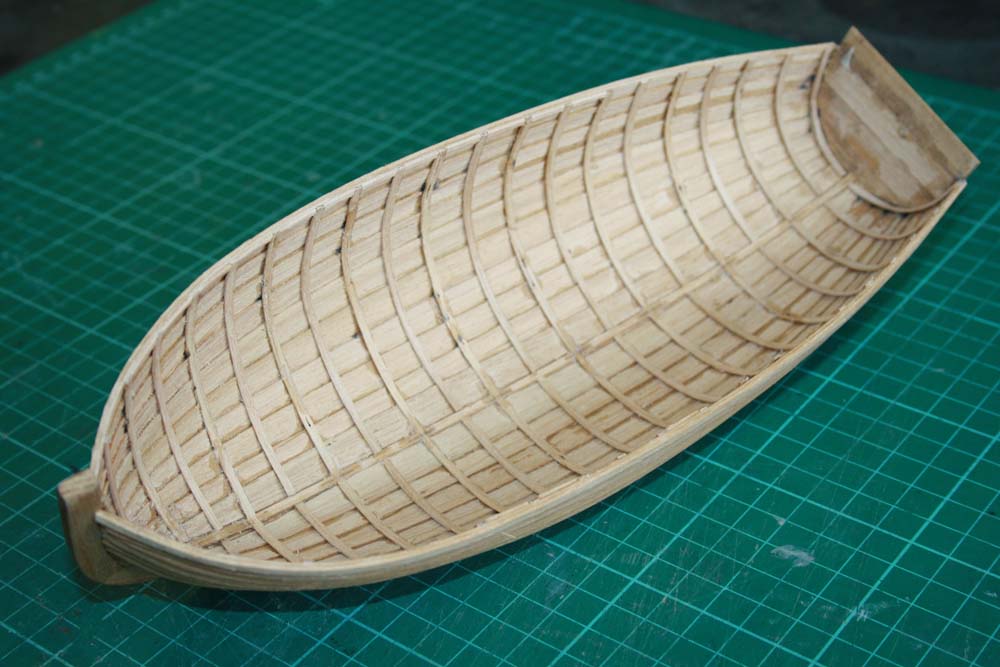

Additional ribs and the gunnel timbers were fitted.
[/GDC_column]
[GDC_column size=”half”]

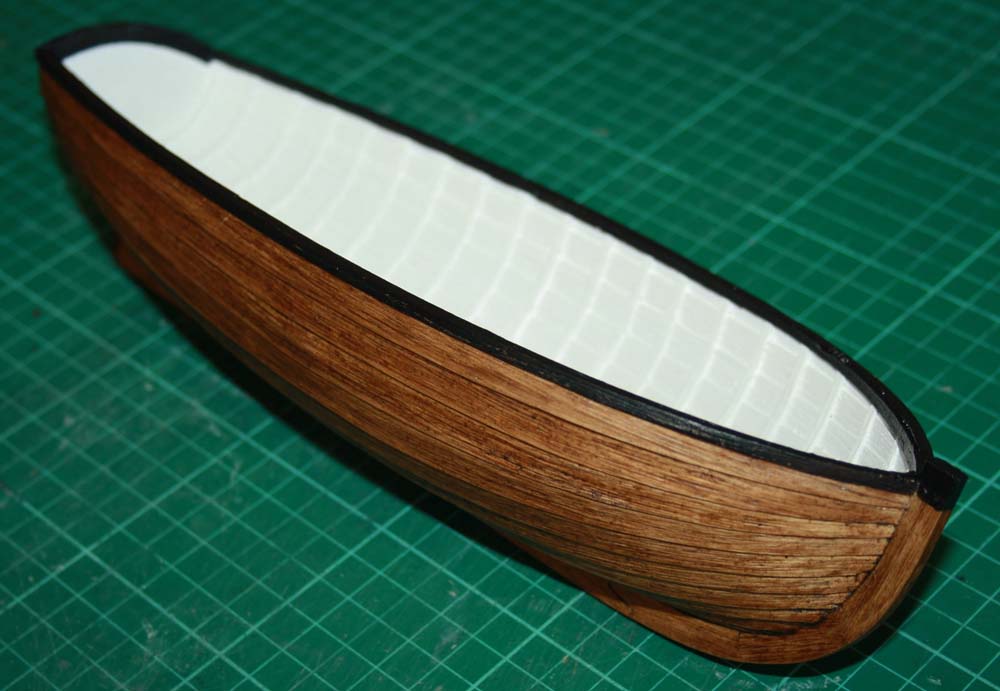

Coated the outside of the hull with a light stain. Painted the inside white and painted the gunnel. The whole model was then painted with a couple of coats of clear satin varnish.
[/GDC_column]
[/GDC_row]
